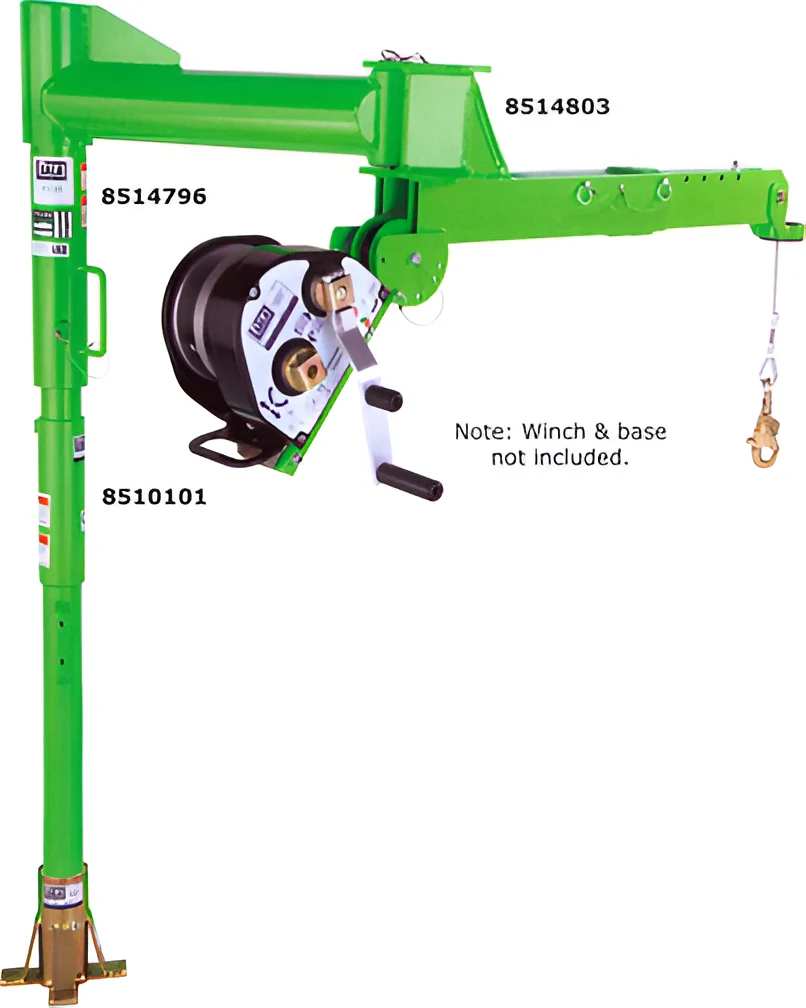

The DBI-SALA Side Entry System (8514803 Arm Assembly and 8514796 Support Post) is designed for confi ned space entry/retrieval and rescue operations involving horizontal entries with vertical positioning or retrieval required inside the space. The Side Entry System can be used, with options, in permanent or portable mount work site confi gurations. The system’s fully articulating boom is part of each configuration. Permanent Mount: The system utilizes fixed base and extension post options to adapt to a wide variety of work site conditions. Portable Mount Configuration: The system is used with an external adjustable tank collar (8511231, sold separately) for adaptation to different manways. Meets or Exceeds ANSI Z117.1-1995, OSHA 1910.146

Features:

• Side entry system arm assembly.
• Multiple pivot point arm assembly.
• Rotating and adjustable mechanical device base.
• Extendable arm up to 6 feet, 1.8 m.
• Main Pivot Point: System can rotate nearly 360° to the left from this point.
• Left Pivot Point: The front arm can rotate 130° to the left from this point.
• Right Pivot Point: Front arm can rotate nearly 130° to the right from this point.
• Range of Motion: 130.8°.
• Clearance Radius: 45 in. (1.14 m) with the system collapsed inward either direction.
• Maximum Extension: 71.77 in. (1.82 m).
• Adjustable Height Range: 38.25 to 53.25 in. (0.97 to 1.35 m) in 1 in. (25.4 mm) increments.
• Bottom Bracket: Rotates, pinned in place. Positions winch to provide handle clearance.
• Winch Mounting Bracket: Option (8530260) used to mount the winch below the bottom bracket (H). Allows use of SRL or second winch.
• Materials: Welded aluminum, powder coated, 6061-T6, 5052-H32 aluminum Hardware: Grade 5/Grade 8 steel, zinc plated.
